Traditional Raised Panel Garage Doors

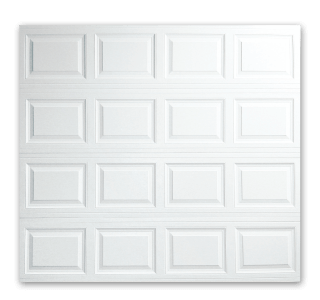

Doorlink Model 510

Thickness - 25 Guage Paint - 1.0mil

Doorlink Model 511

Thickness - 25 Guage Paint - 1.0mil Efficiency - 6.85 Interior - Vinyl

Constructed of top quality materials, highly detailed raised panel, deep woodgrain texture and two coat prefinished paint system all combine to enhance the beauty of your home.

AVAILABLE WINDOWS

Open Up Garage Door Inc. Cornelius, NC

#306 Sherwood

 Open Up Garage Door Inc. Pineville, NC

#305 Williamsburg

 Open Up Garage Door Inc. Charlotte, NC

#591 Cascade

Cathedral Garage Windows

#393 Cathedral

 Open Up Garage Door Inc.

#397 Stockton

 Open Up Garage Door Inc.

#597 Stockbridge

 Open Up Garage Door Inc.

#320 Waterton

CONSTRUCTION

 Open Up Garage Door Inc. Charlotte, NC

SIZE OPTIONS

Door Widths Panels Wide
8', 9'
10'  Open Up Garage Door Inc. Pineville, NC
12'
14', 15'
16', 17', 18'
20', 22'

STANDARD FEATURES

25 gauge metal

Hot dipped galvanized steel construction with hemmed inside return rail provides superior strength and durability.

1.0 mil paint system

Includes .25 mil rust inhibiting primer and .75 mil exterior top coat that resists fading and chalking while providing consistent color from panel to panel, and long life.

Rolled safety edges on section joints

Eliminates sharp edges, and provides extra strength.

19 Gauge hot dipped galvanized stiles

Heavy duty metal styles give strong rigid support for all hinges, rollers and operator attachment.

Stiles attached with rivets

Provides superior strength when compared to common sheet metal joining methods.

Tongue and groove meeting rails

For superior strength and better sealing against wind, rain and snow.

Rigid aluminum retainer

Provides added strength while securing replaceable u-shaped bottom weatherstrip to help keep the elements out.

511 ADDITIONAL FEATURES

R Value 6.85 Insulation

Enhances your home's energy savings, makes your door operation quieter, and reduces exterior noise in your garage.

CFC Free expanded polystyrene

Environmentally friendly insulation that will not degrade with vibration or time.

High impact plastic back cover

Protects the insulation, and enhances the interior look of your garage door.

COLOR OPTIONS

 Garage Door Installation Concord, NC White
 Garage Door Installation Concord, NC Almond
 Garage Door Spring Repair Charlotte, NCSandstone

Heights Available

6'6", 6'9", 7'0", 7'6", 7'9", 8'0"
