Doorlink Model 3650

Thickness - 24 Guage Paint - 1.0mil Thickness - 24 Guage

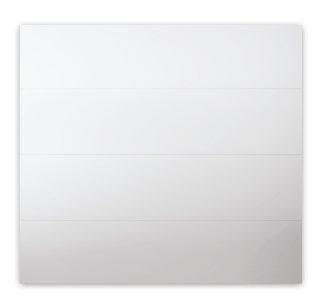

2″ thick insulated steel sandwich panel constructed of top quality materials. Flush panel with deep woodgrain texture and two coat prefinished paint system all combine to enhance the beauty of your home.

CONSTRUCTION

 Open Up Garage Door Inc. Charlotte, NC

COLOR OPTIONS

 Garage Door Installation Concord, NC White
 Garage Door Installation Concord, NC Almond
 Garage Door Opener Installation Concord, NC Desert Tan
 Garage Door Spring Repair Charlotte, NCSandstone
 Garage Door Repair Services Charlotte, NCBrown

* Colors may vary from actual product.

SIZE OPTIONS

Door Widths
8', 9', 10', 12', 14', 15', 16', 17', 18', 20', 22'

Heights Available

6'6", 6'9", 7'0", 7'6", 7'9", 8'0"

STANDARD FEATURES

26 gauge metal

Hot dipped galvanized steel construction with hemmed inside return rail provides superior strength and durability.

1.0 mil paint system

Includes .25 mil rust inhibiting primer and .75 mil exterior top coat that resists fading and chalking while providing consistent color from panel to panel, and long life.

20 Gauge hot dipped galvanized stiles

Galvanized steel hinge plates run the full height of each section at all hinge locations to facilitate the attachment of hinges, handles, struts and step plates.

Tongue and groove meeting rails

For superior strength and better sealing against wind, rain and snow.

Rigid aluminum retainer

Provides added strength while securing replaceable u-shaped bottom weatherstrip to help keep the elements out.

R Value 10.25 Insulation

Sandwich type construction with polystyrene insulation pressure bonded between two sheets of 26 gauge hot dipped galvanized steel enhances your home’s energy savings, makes your door operation quieter, and reduces exterior noise in your garage.

CFC Free expanded polystyrene

Environmentally friendly insulation that will not degrade with vibration or time.
