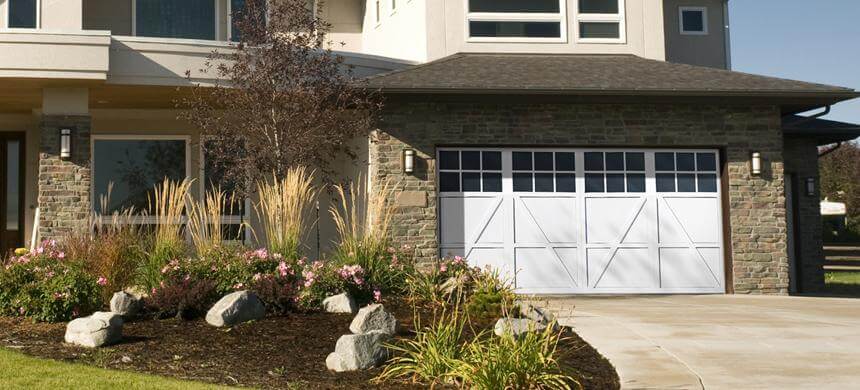

millcreek-house

Mill Creek

Glass - 1/8 Inch Glass - 1/2 Inch Insulated

The perfect combination of commercial aluminum strength with elegant carriage style looks. Designed for use in all residential and commercial establishments. Choose from a variety of unique styles and colors to match any need.

STANDARD FEATURES

Glazing

Sections can be glazed with 1/8″ tempered glass or 1/2″ insulated glass. Many options are available including tinted glass or low E glass. 0.062″ powder coated white aluminum panels can be used in any section.

Finish

Mill Creek doors have a standard finish of white powder coat. Consult factory regarding custom colors and clear anodized finishes. Doors can also be field painted to match your house’s custom color.

Weatherstrip

Bottom rail has a replaceable U type bottom astragal. Optional weather-stripping is available for header and jambs.

Operation

Operation to be manual push up, chain hoist, or electric motor.

Wind Load

Consult factory for available wind load rated options.

AVAILABLE WINDOWS

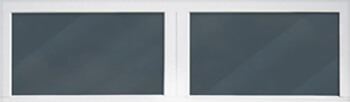

Standard

Standard

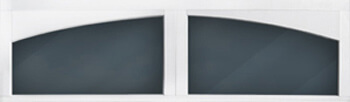

Arch

Arch

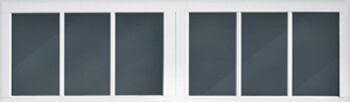

Stockbridge

Stockbridge

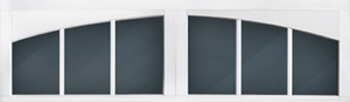

Wyndbridge

Wyndbridge

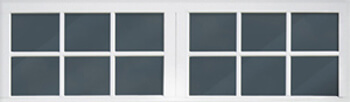

Stockton

Stockton

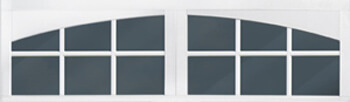

Somerton

Somerton

DOOR STYLES

Style 2

Style 3

Style 4

Style 5

Style 6

SIZE OPTIONS

Door Widths Panels Wide
8′, 9′
10′, 12′
15′, 16′, 18′

Heights Available

6’6″ 6’9″ 7’0″ – 3 Sections Tall
7’3″ 7’6″ 7’9″ 8’0″ – 4 Sections Tall

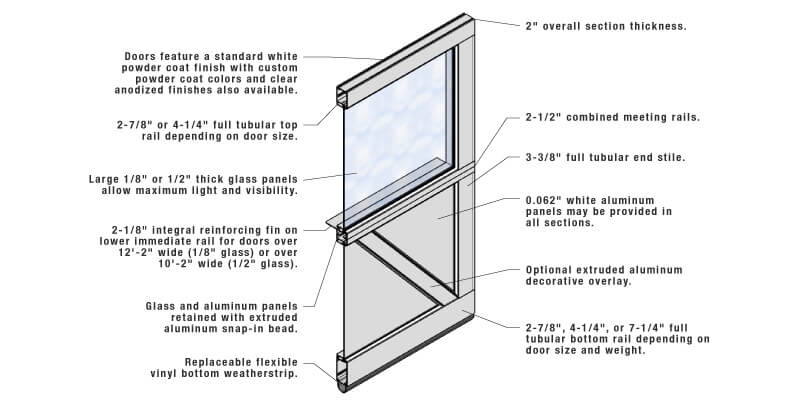

CONSTRUCTION
