Doorlink 3640 Grooved Ranch Panel

3640

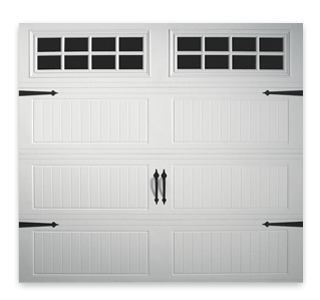

2″ thick insulated sandwich panel constructed of top quality materials. Highly detailed grooved panel, deep pebblegrain texture and two coat prefinished paint system all combine to enhance the beauty of your home.

AVAILABLE WINDOWS

#388 Somerton

#287 Stockton Arch

#387 Stockton

#588 Wynbridge

#587 Stockbridge

Not all glazing options may be available from all distributors.

No glazing on 18″ sections.

CONSTRUCTION

SIZE OPTIONS

Door Widths	Panels Wide
8', 9' 10'
12', 14'
15', 16', 17', 18'
20', 22'
24'

Heights Available

6’6″, 6’9″, 7’0″, 7’6″, 7’9″, 8’0″

STANDARD FEATURES

26 gauge metal

Hot dipped galvanized steel construction with hemmed inside return rail provides superior strength and durability.

1.0 mil paint system

Includes .25 mil rust inhibiting primer and .75 mil exterior top coat that resists fading and chalking while providing consistent color from panel to panel, and long life.

Rolled safety edges on section joints

Eliminates sharp edges, and provides extra strength.

19 Gauge hot dipped galvanized stiles

Heavy duty metal styles give strong rigid support for all hinges, rollers and operator attachment.

Stiles attached with rivets

Provides superior strength when compared to common sheet metal joining methods.

Tongue and groove meeting rails

For superior strength and better sealing against wind, rain and snow.

Rigid aluminum retainer

Provides added strength while securing replaceable u-shaped bottom weatherstrip to help keep the elements out.

Directional Wood Grain on Walnut & Oak Colors
